USAXS/SAXS

TECHNICAL INFORMATION

Any unauthorized reproduction, copying, or alteration of information on this website is prohibited.
Latest news and schedules for beamline upgrades are available on this page. Please also check it for updates.

Basic Information

  • Energy The available energy options are as follows
    • 8.3 keV
    • 18.3 keV
    8.3 keV is the default setting. Consequently, if you request 18.3 keV, setup/adjustment time may be required at both the beginning (transitioning from 8.3 keV to 18.3 keV) and the end (transitioning back from 18.3 keV to 8.3 keV) of your beamtime.
  • FluxApprox. 1.3 × 1011 photons/s (at 8.33 keV)
  • Beam SizeApprox. 200 µm(H) × 200 µm(V)
  • Camera LengthUSAXS: Approx. 9.5 m / SAXS: Approx. 2.0 m
  • q-rangeUSAXS: 0.0080 - 0.22 Å-1 / SAXS: 0.0400 - 1.00 Å-1 (at 8.3 keV)
  • DetectorPILATUS 300K-W (Pixel size: 172 µm)

Measurable q-range

USAXS/SAXS q-range

Layout

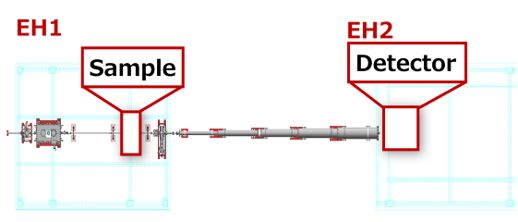

USAXS Setup
USAXS Setup

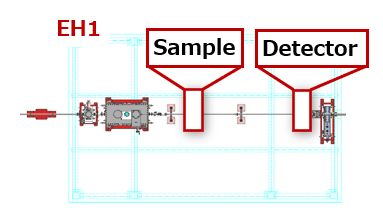

SAXS Setup
SAXS Setup

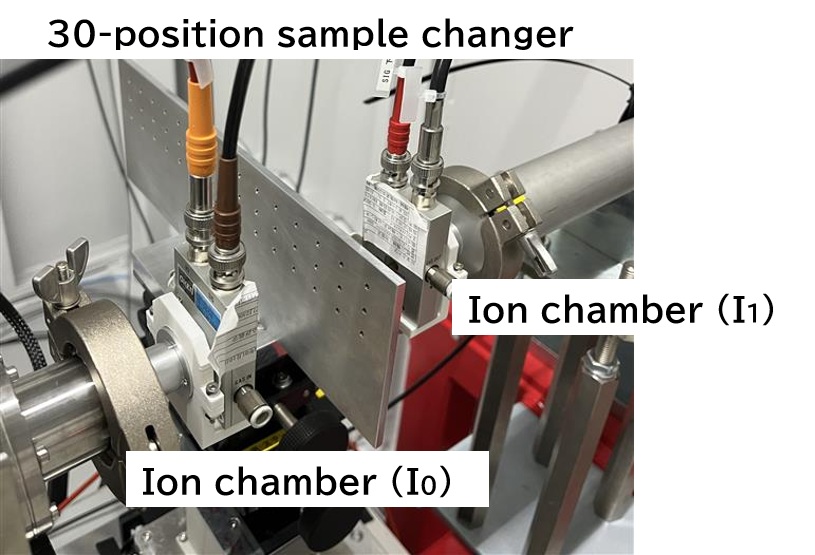

Sample Stage
Sample Stage
Click here for the drawing

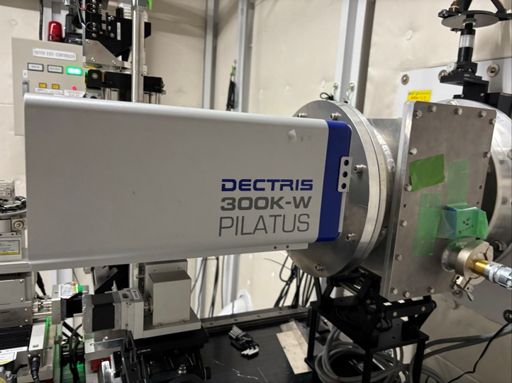

Detector (PILATUS300K-W)
Detector (PILATUS300K-W)

Measurement Examples

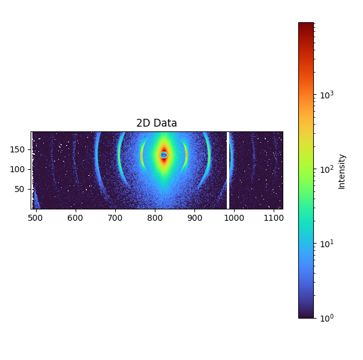

Collagen
Collagen

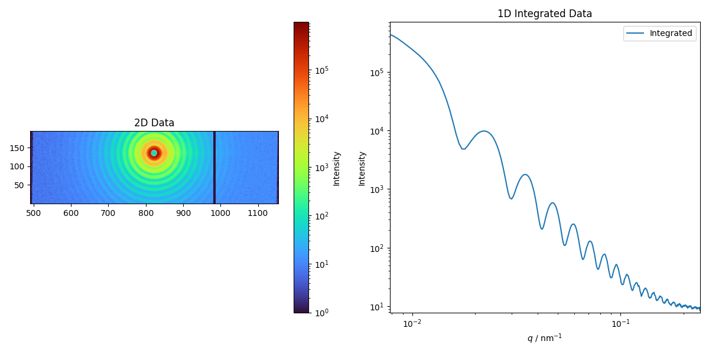

SiO2 Nanoparticle Dispersion
SiO2 Nanoparticle (500 nm) Dispersion
